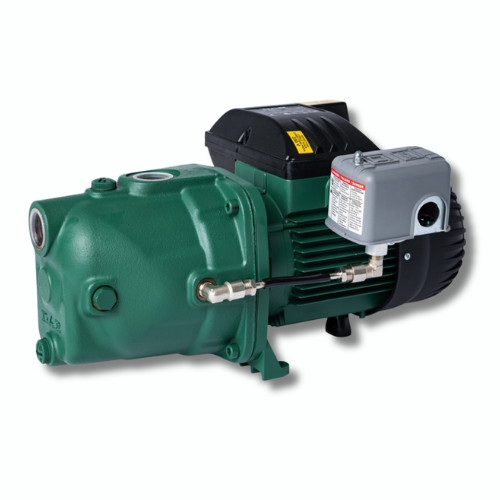

Dab Self Priming Jet Pump 75
Call for Pricing
Dab Self Priming Jet Pump 75 is great at pulling in water, even when there are air bubbles. It works well for moving water that has a little bit of sand. It’s perfect for homes, small farms, gardens, and small industrial services that need a pump which can start by itself. Ideal for places where self-starting pumps are needed.
Features:
• Operating range: capacity up to 23 gpm; head up to 213 ft (92 psi)
• Liquid quality requirements: clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallized and chemically neutral.
• Liquid temperature range: from 32°F to +95°F for domestic use for other use: from 32°F to +104°F
• Maximum suction depth: 29 ft
• Maximum ambient temperature: +122°F
• Maximum pressure: 115 psi
• Motor range: 1/2Hp , 3/4 Hp, 1Hp
• Standard input voltage: single phase 115/230 V – 60 Hz Dual Voltage
• Insulation class: F
• Installation: Horizontal fixed position
