SJE-Rhombus Single Phase Duplex Control Panel
Call for Pricing
The SJE-Rhombus Installer Friendly Series (IFS) Duplex Control Panel offers advanced, reliable control for two 120/208/240V single-phase pumps in water and sewage applications. This newly redesigned panel includes a user-friendly color LCD interface for quick setup, monitoring, and easy conversion between timed and demand dosing in the field.
For flexibility, the panel supports both traditional float sensors and the patented C-Level™ sensor, which provides continuous tank level monitoring. This feature allows pump activation levels to be adjusted directly through the LCD interface.
Key Features:
Compact, Durable Enclosure: 12 x 10 x 6 inches, NEMA 4X-rated for outdoor and indoor use; UV-stabilized, pad lockable, and impact-resistant.
Intuitive Display Board: Tracks pump cycles, events, and alarms with clear visual indicators.
360° Alarm Beacon & Horn: Provides both visual and audible warnings, with external test/silence functions.
Reliable Circuit Protection: Circuit breakers for pump power disconnect and branch protection.
Status LEDs: Green and red LEDs indicate power, alarm, pump run, and controller status.
Built-in Modbus Port (RJ45): Allows for future expansions, including remote monitoring and additional modules.
Touch-Safe Housing: Ensures user safety while adjusting settings.
This robust, installer-friendly control panel is built for long-lasting performance in demanding water management applications.
Related products
-

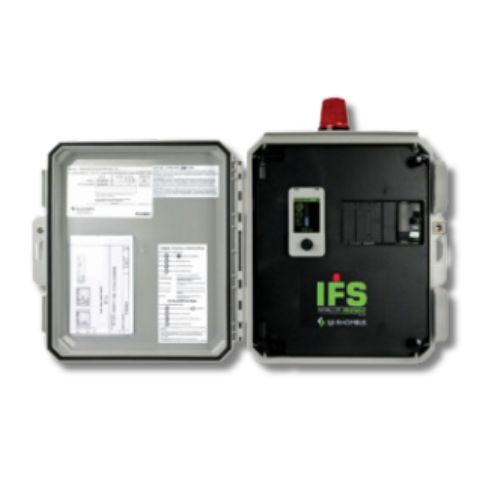

SJE-Rhombus IFN21W Simplex Control Panel
View productSJE-Rhombus IFN21W Simplex Control Panel
-

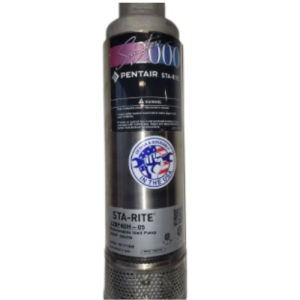

Pentair 1 1/2HP 50GPM Pump End
View productPentair 1 1/2 HP 50GPM Stainless Steel Series Pump End – L50P4FH-05
-

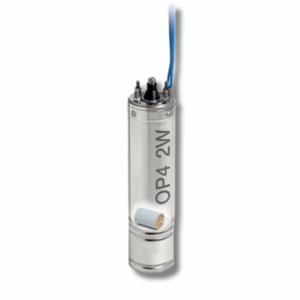

Sumoto Submersible Pump Motor
